Description
Carlsson Aerodyamic Package – Carlsson Complete Front Bumper Spoiler – Optional RS Front Lip Spoiler (adds on to Carlsson complete front bumper spoiler) – Optional LED DRL Light Kit – Carlsson side skirts with LED ground illumination – Carlsson full rear bumper w/diffuser and integrated exhaust tips – Carlsson trunk spoiler for the decklid – 21″ staggered Carlsson 1/5 Evo DS wheels If the base car for Carlsson Mercedes S-Class treatment is the S500, they can give you a mere 610 horsepower and 900 Nm of torque; an increase of 150 hp and 200 Nm, and impressive by any measure. But if you choose the S63 AMG, Carlsson’s magic touch will results in a colossal 780 horsepower and over a 1000 Nm. That’s an increase 200 horsepower. Brabus is not the only Merc tuner with those numbers anymore. As for the visual features, since Carlsson Mercedes S-Class is stilla a dignified luxury saloon, you only get an RS front spoiler, a pair of side skirts, and a new rear diffuser with four uniquely-shaped tailpipes. A set of Carlsson wheels, available in 19 to 21-inch versions, are also provided.
VIDEO
| Item No. | Parts | Description | Price |

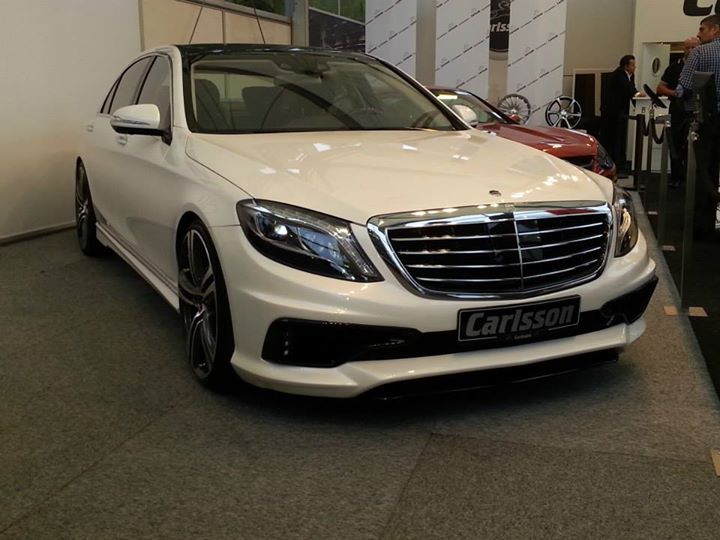

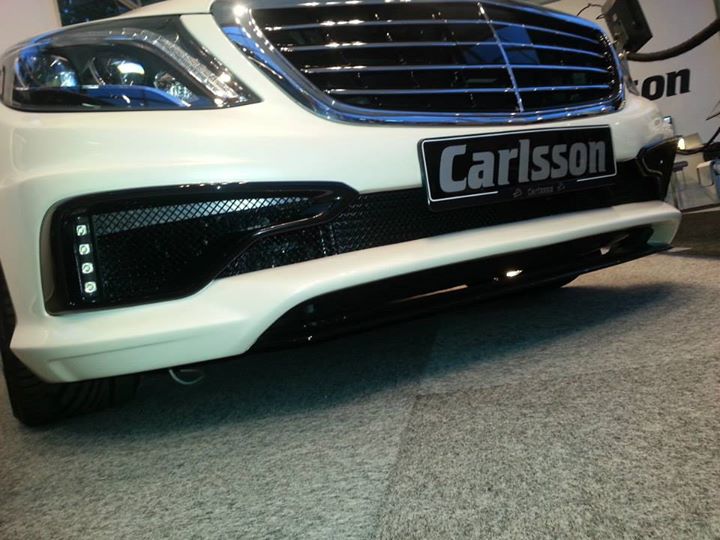

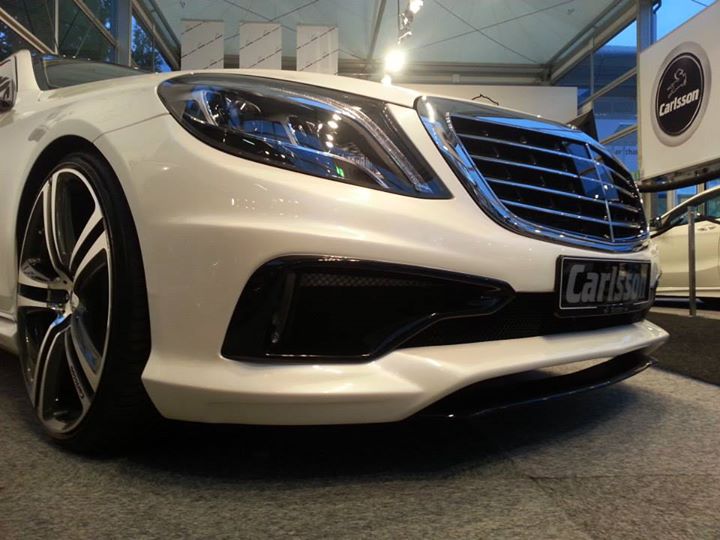

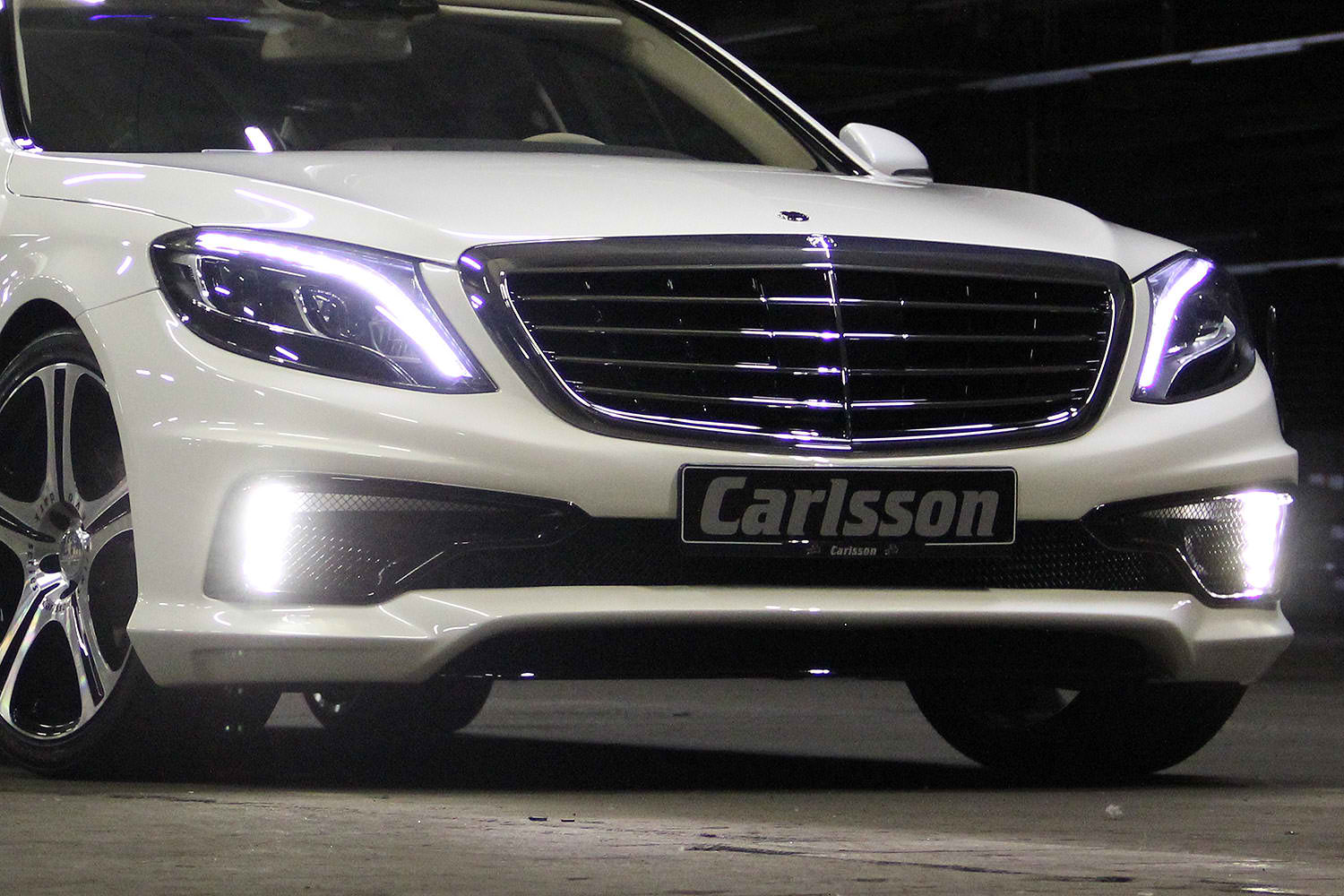

| 51W2220100P | Front Skirt | Made of PUR Including grille insert made of electropolished stainless steel mesh, 3 pcsPlease note: The picture shows the frontpoiler including frontspoilerlip RS. The frontspoilerlip RS is not included in the retail price. | $2,478 |
| 51W2220110P | Front Spoiler Lip RS | Made of PUR Only in combination with Carlsson frontskirt 51W2220100 | $511 |

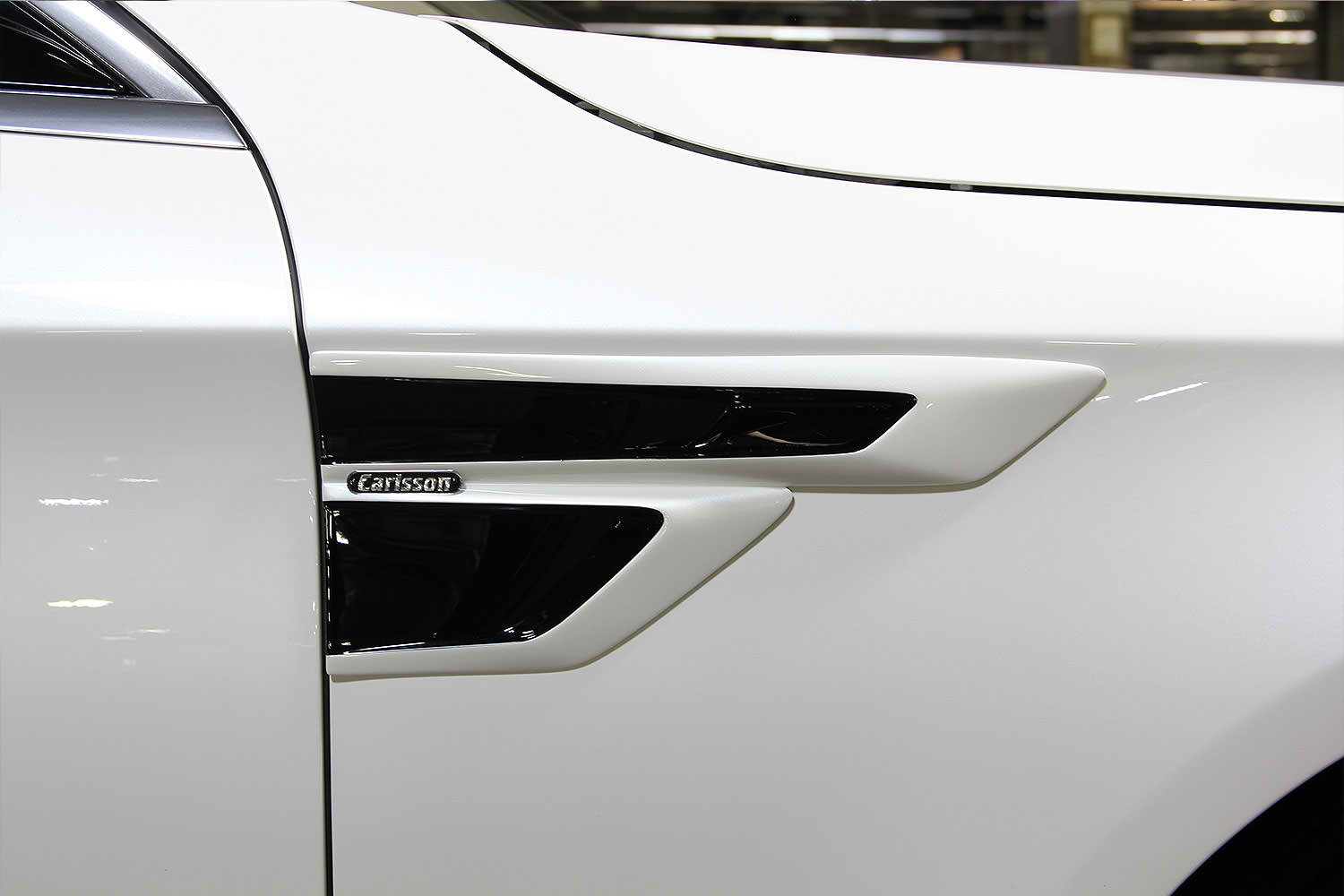

| 51W2220260P | Front Fender Add On | Made of PUR | $642 |

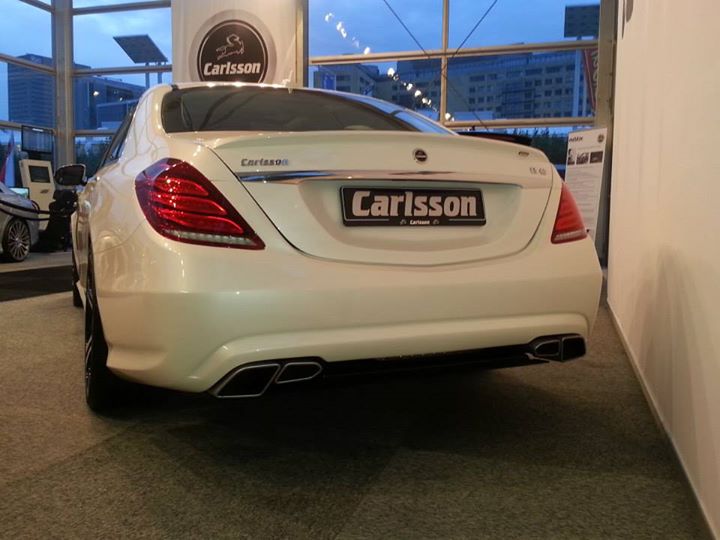

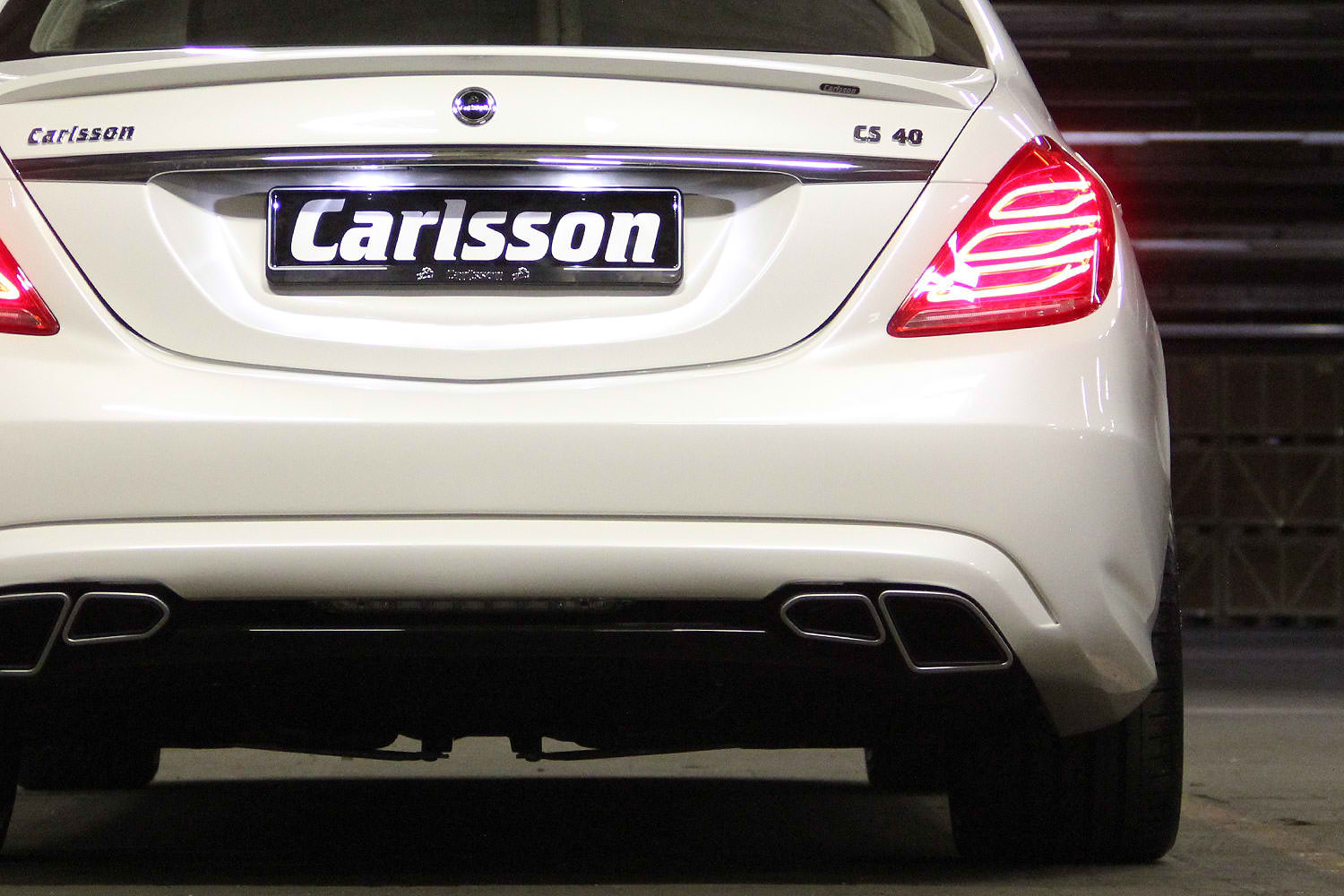

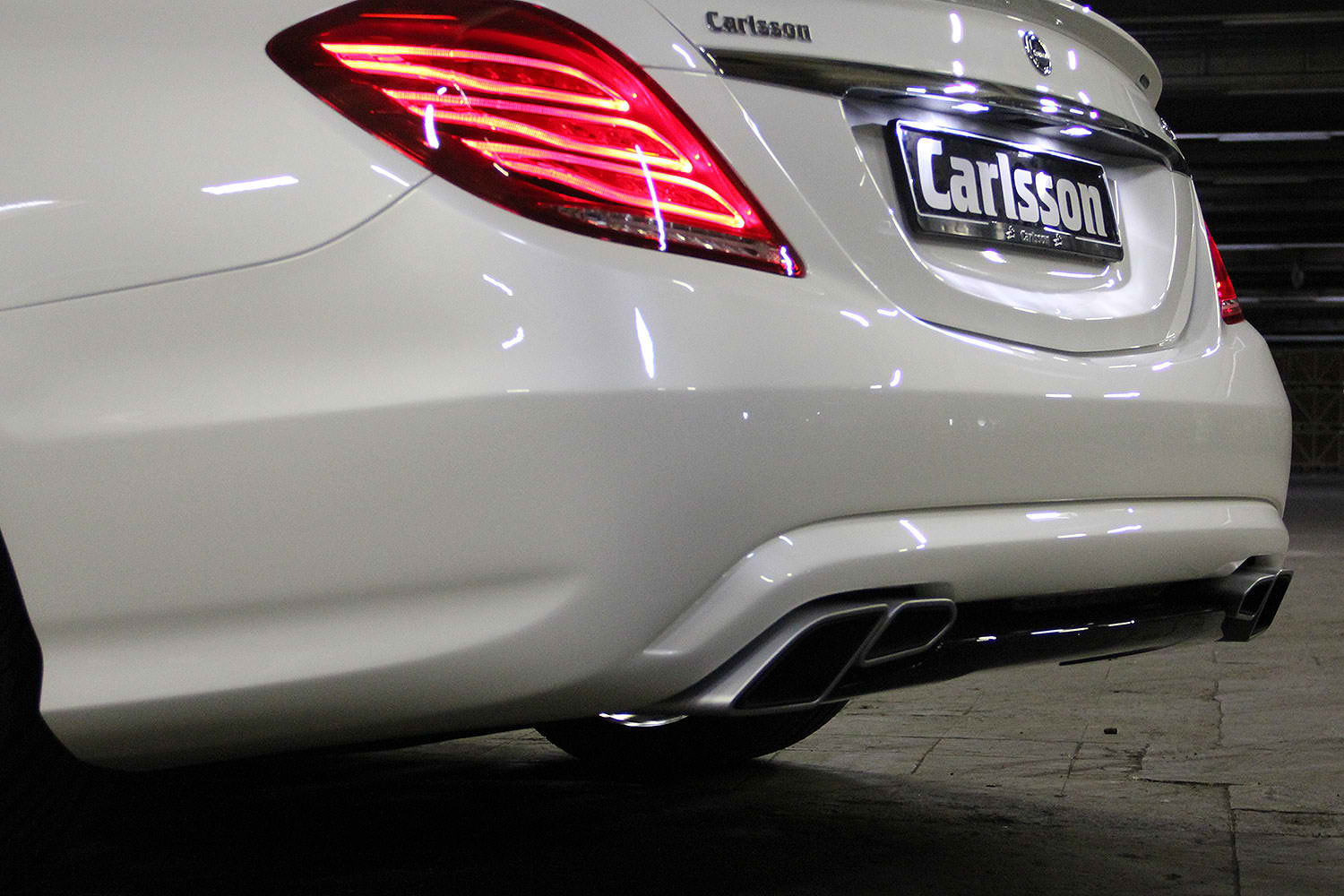

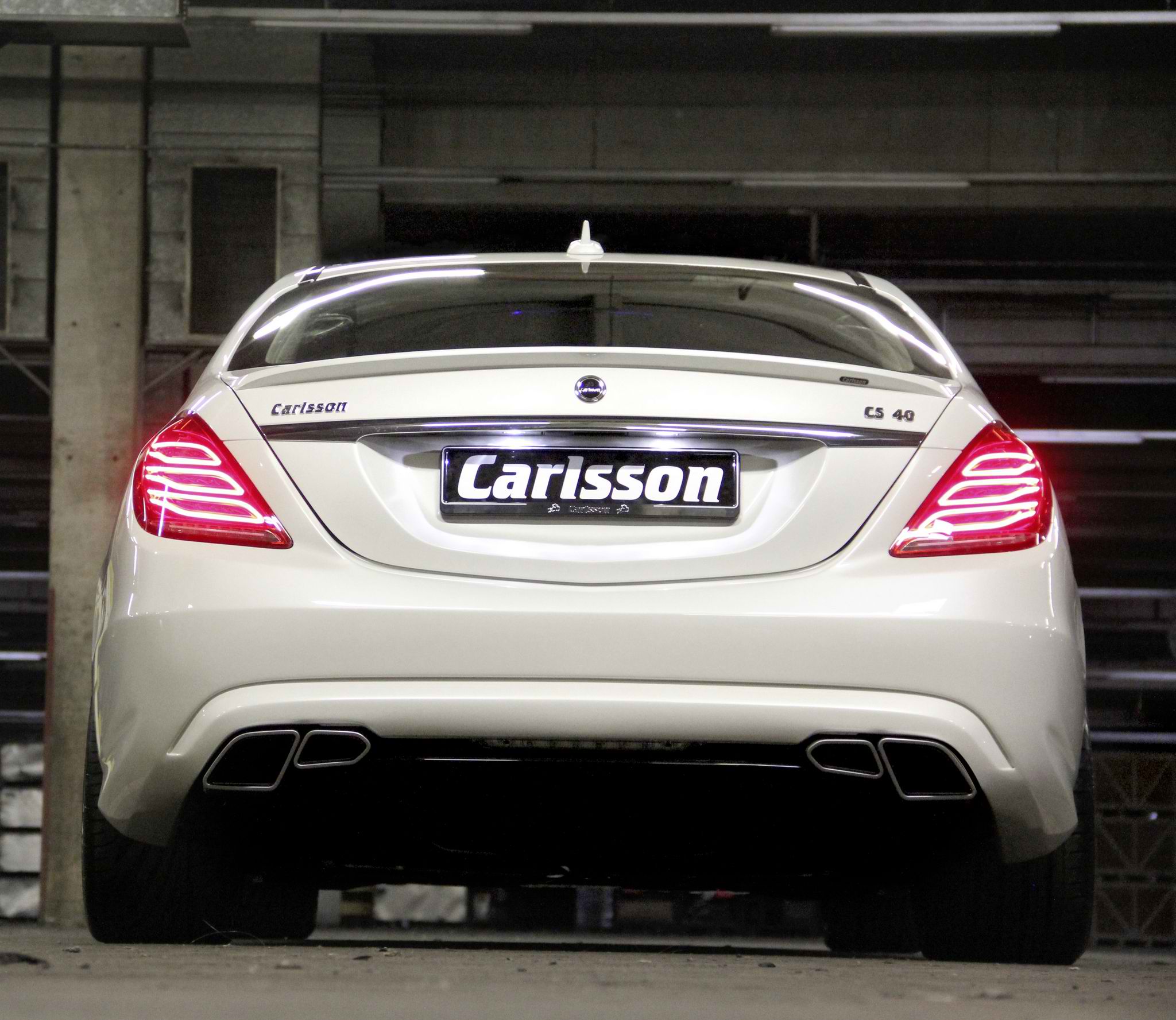

| 51W2220400P | Rear Skirt | Made of PUR including Diffusor, Including 4 trapeze tailpipes left/right | $2,609 |

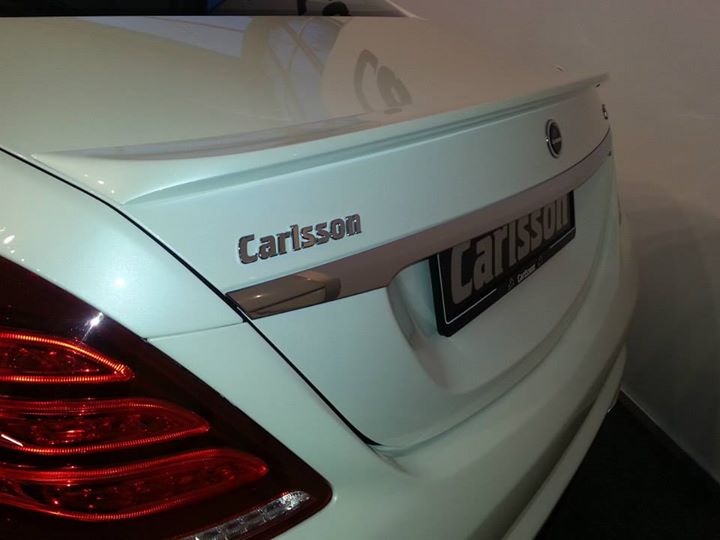

| 51W2220500P | Rear Spoiler | Made of PUR – IHS | $773.49 |

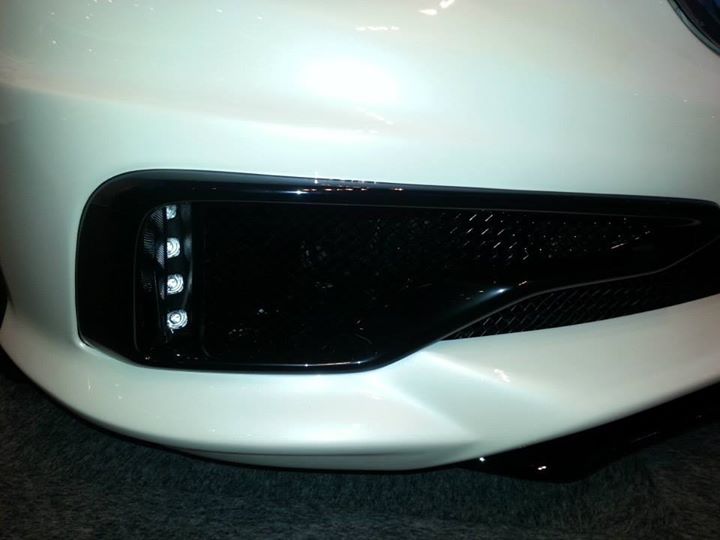

| 62W2220100Q | Daytime Running Light | Export Version No specific approval available! Technically safe assembly | $536 |
| Interior | |||
| 52001250M | Aluminium Doorlock | With Carlsson logo Angular, 4 pcs | $156 |
| 52001335M | Aluminium Pedal Covers | With Carlsson logo, for Automatic transmission, 3 pcs | $176 |
| 52101300M | Aluminium Foot Rest | With Carlsson logo for Manual and automatic transmission | $169 |
| 52361260M | Aluminium Foot Rest | With Carlsson logo for Manual and automatic transmission | $105 |
| 52361250M | Aluminium Pedal Covers | With Carlsson logo for Automatic transmission, 2 pcs | $105 |
| 52V2220800M | Door Sills LED | With illuminated Carlsson Logo Driver and front passenger side, 2pcs | $1,036 |
| 52W2220100M | Floor Mats | With Carlsson logo On the front floor mats black soft velours, 4 pcs without foot rest for left hand drive only! | $195 |
| Performance Kit | |||
| 11000500M | Performance Kit CK50 | (emission standard Euro 5)consists of: special electronic set-up of the engine management system, sport air filter, Vmax delimiter, Carlsson chrome lettering Carlsson performance letteringFuel required: RON 98 (RON 95 only in emergencies and at partial load)Original (W/S212, A/C207, W166, C/X218) max. power: 300 kW (408 hp) / 5250 rpm max. torque: 600 Nm / 1600 – 4750 rpm V-max: 250 km/hCarlsson (W/S212, A/C207, W166, C/X218) max. power: 385 kW (523 hp) / 5250 rpm max. torque: 730 Nm / 2100 – 3500 rpm V-max: 250-300 km/h*Original (R231, X166, C216, W/V221, W/V222) max. power: 320/355 kW (435/455 hp) / 5250 rpm max. torque: 700 Nm / 1800 – 3500 rpm V-max: 250 km/hCarlsson (R231, X166, C216, W/V221, W/V222) max. power: 385 kW (523 hp) / 5250 rpm max. torque: 830 Nm / 2100 – 3500 rpm V-max: 250-300 km/h* *Depending on manufacturer tyre approval and speedometer unit! The optimization of the ECU software can only be done at the Carlsson headquarter Germany. The ECU can also be sent to Carlsson directly (delivery time about 1 week). Compatible to following engines: – M 278.922 – M 278.920 – M 278.932 – M 278.927 – M 278.929 – M 278.928 | $6,542 |
| 11001630M | Performance Kit CK63 | (emission standard Euro 5)consists of: special electronic set-up of the engine management system, Vmax delimiter, special air filter, Carlsson chrome letteringFuel required: RON 98 (RON 95 only in emergencies and at partial load)Base C216, C/X218, R231, W/S212, W166, W/V221, W/V222, W463, X166Original: max. power: 386 – 430 kW (525 – 585 hp) bei 5500 rpm max. torque: 700 – 900 Nm bei 1700 – 5000 rpm V-max: 250 km/hCarlsson: max. power: 478 kW (650 hp) bei 5500 rpm max. torque: 780 Nm at 1700 – 5000 rpm V-max*: 300 km/h; 310 km/h; 320 km/hThe optimization of the ECU software can only be done at the Carlsson headquarter Germany. The ECU can also be sent to Carlsson directly (delivery time about 1 week). * Depending on the release of the tire manufacture Compatible to following engines: – M 157.981 – M 157.980 – M 157.983 – M 157.985 – M 157.982 | $6,542 |
| 12000350O | C-Tronic DIESEL POWER SW CD35 | consists of: special electronic set-up of the engine management system, Carlsson chrome letters, Carlsson “”performance”” lettersBase W/S212, C/X218, A/C207original: max. power: 185 kW (252 hp) / 3600 rpm max. torque: 620 Nm / 1600-2400 rpmBase W166, X166, W/V221, W/V222, C/X218original: max. power: 190 kW (258 hp) / 3600 rpm max. torque: 620 Nm / 1600-2400 rpmCarlsson: max. power: 221 kW (300 hp) / 3600 rpm max. torque: 700 Nm / 1600-2400 rpmThe modification can only be done by Carlsson Autotechnik at Gut Wiesenhof. Alternative: the engine computer can be sent to Carlsson (delivery time about 1 week).Compatible to following engines: – OM 642.838 – OM 642.853 – OM 642.854 – OM 642.850 – OM 642.862 – OM 642.868 – OM 642.861 – OM 642.826 – OM 642.886 – OM 642.970 – OM 642.820 | $1,965 |
PRESS RELEASE

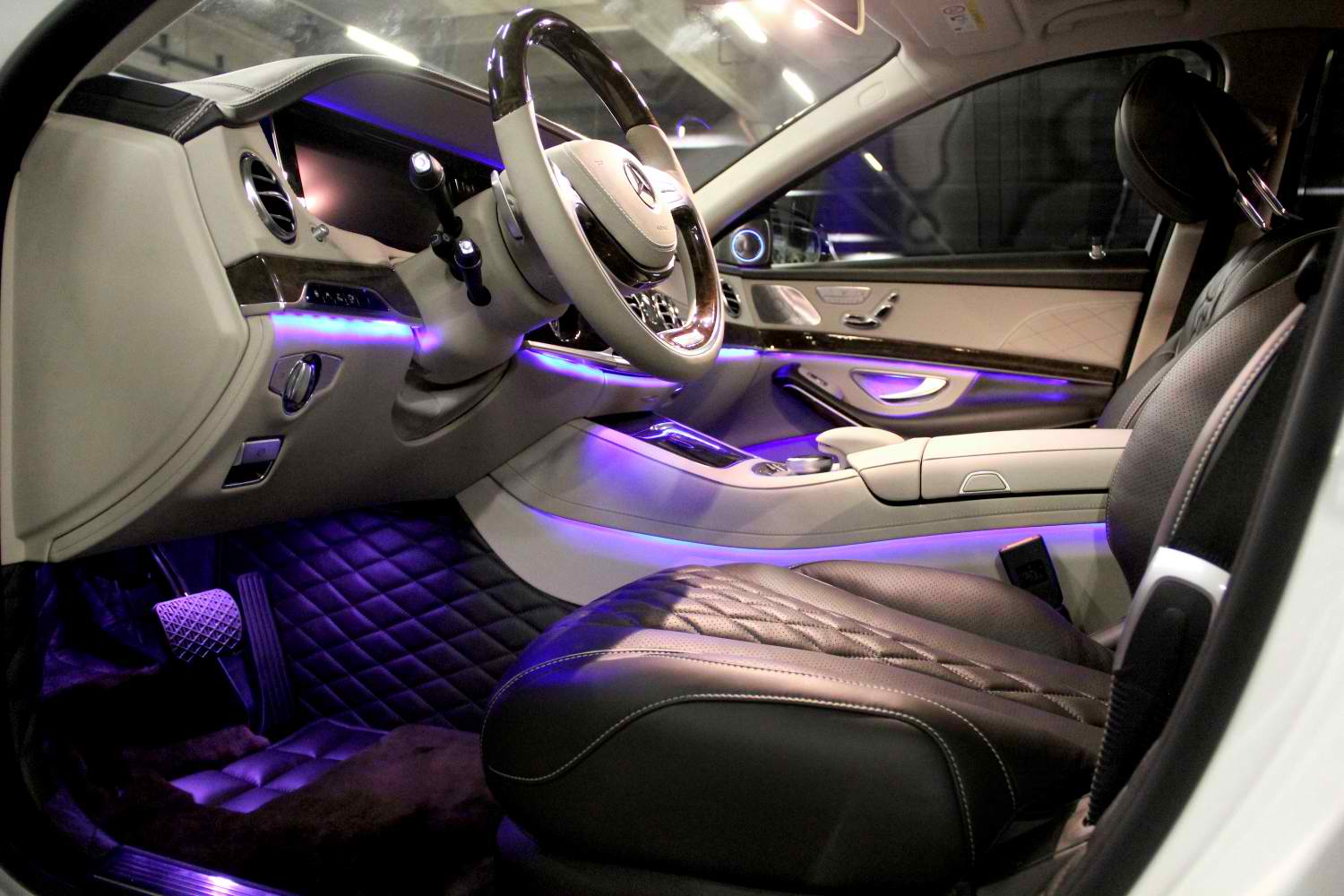

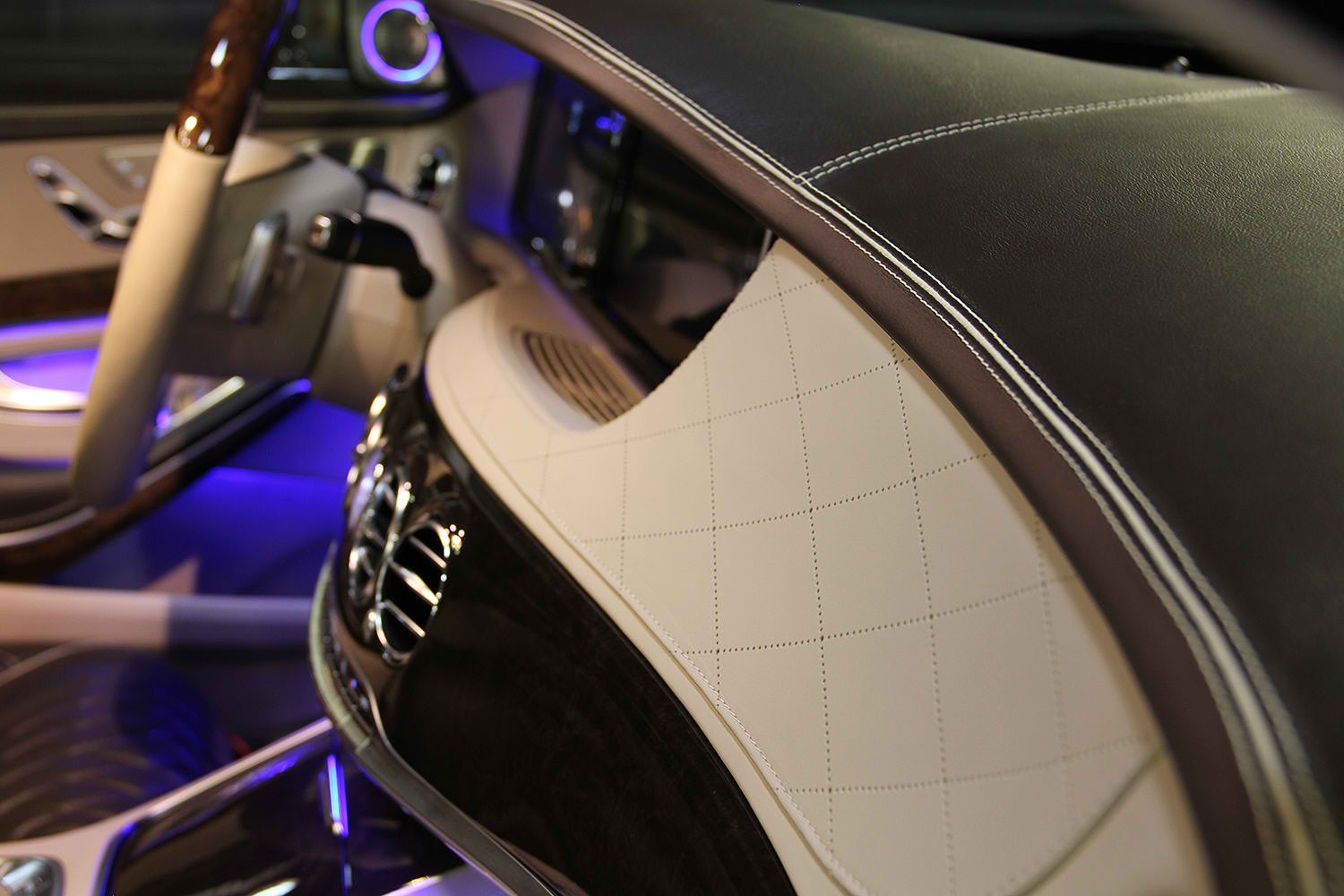

Carlsson Mercedes-Benz S-Class Rolf and Andreas Hartge, two brothers, founded the brand Carlsson back in 1989. Today, it is a leader in tuning Mercedes Benz due to the sophistication and class they have backing them. Fortunately, the new S-class received a new Carlsson aerodynamics package, which really sets it apart from the other tuners packages. This new aero package consist of a new Carlsson front apron, Carlsson front spoiler lip, and a new Carlsson hood with grill inserts made of electro polished stainless steel. Because Carlsson is such a perfectionist when it comes to tuning, they included: new side skirts, four additional headlight (fog lights and high beams), and vertically integrated LED daytime running lights. As for the rear of the vehicle, Carlsson included a new rear apron and a sporty rear spoiler. As for the interior of the S-class, Carlsson gave the vehicle upscale leather for both front seats, the rear seat bench including all head rests as well as all four door panels. And their customers are able to choose the leather’s color as well as the stitching. The most unique part of the Carlsson package is that customers may choose complimentary or contrasting seams, outline stitching and piping with a combination of leather and Alcantara. Moreover, they may personalize their vechicle with their family crest of the headrests or on the wood inlays. Inside, customers will be pleased to see that Carlsson added Merino Sheepskin floor mats that are color matched to the vehicle’s interior. Of course, the signature Carlsson logo is embossed into the headrests as well as a blue illuminated signature in the door sill. To complete the look, there is the Carlsson logo is on the aluminum pedals and footrest. The Mercedes S-class was also given a Carlsson’s ECU upgrade to enhance the power. The stock version of the S-class motor had 610 horsepower at 633 torgue with a top speed of 180 mph. After the ECU upgrade, the S-class now produces 600 of horsepower as well as 1024 Newton metres of torque! The newly tuned S-Class is able to sprint from 0-60 mph in 4.3 seconds and has a new top speed if which is limited to 198 mph!!! Finally, Carlsson added 20-inch light alloy wheels 1/10 Brilliant Edition.
OVERVIEW
Carlsson Mercedes-Benz S-Class new aero package consist of a new Carlsson front apron, Carlsson front spoiler lip, and a new Carlsson hood with grill inserts made of electro polished stainless steel. Also included: new side skirts, four additional headlight (fog lights and high beams), and vertically integrated LED daytime running lights.
